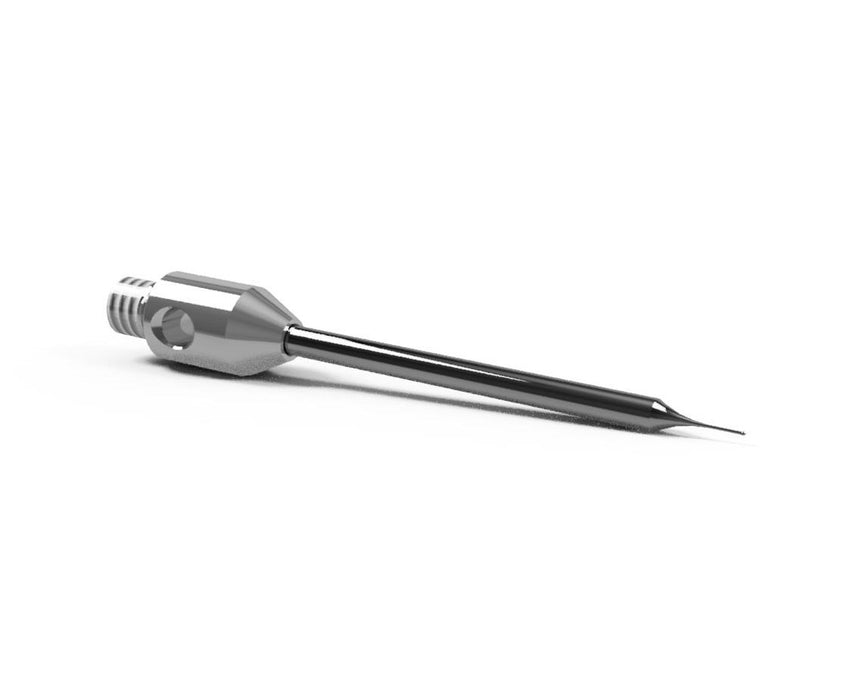

SM3 M015 022 CCA - Stepped Micro M3 CMM Stylus 0.15mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm
$262.00 USD
SKU SM3 M015 022 CCA
- Thread Size: M3
- Ball Size: 0.15 mm Ball
- Ball Material: Carbide
- Stem Length: 22.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 15.0 mm

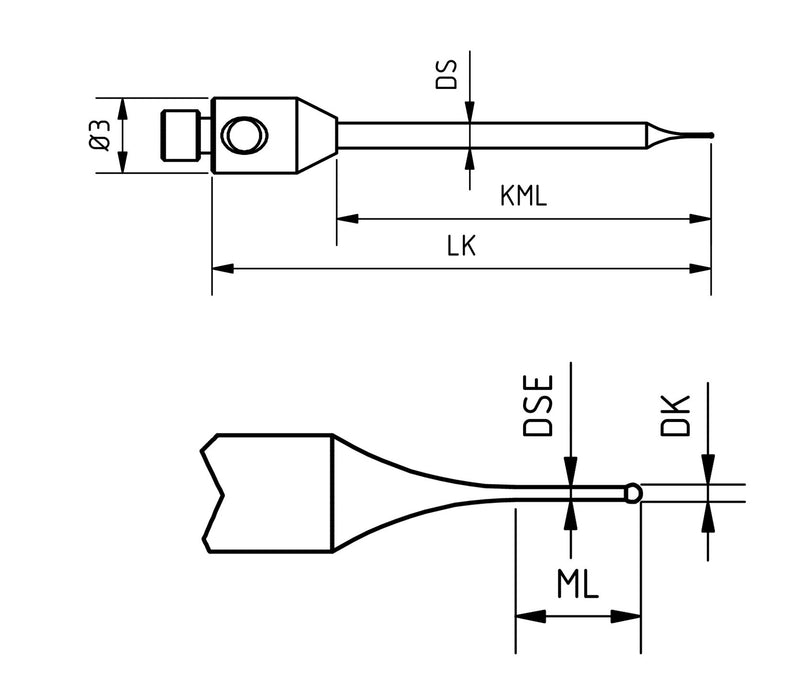

- DK: 0.15 mm
- LK: 22.0 mm
- KML: 15.0 mm
- MLK: 1.0 mm
- DS: 1.0 mm
- DSE: 0.11 mm
