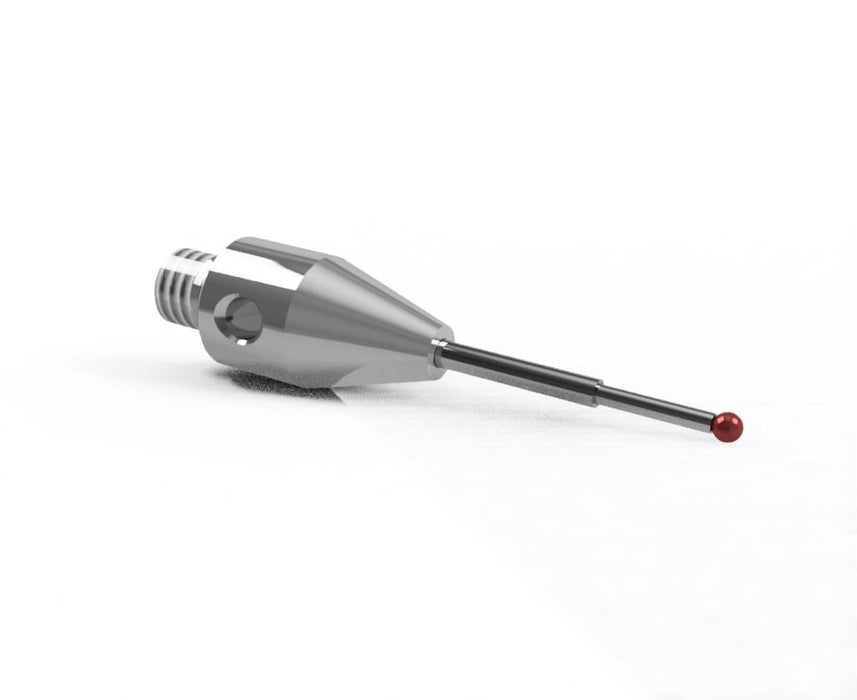

SM3 XS10 030 RCA - XXT Stepped M3 CMM Stylus 1.0mm Ruby Ball, 30mm Tungsten Carbide Stem, EWL 21mm
$55.00 USD
SKU SM3 XS10 030 RCA
- Thread Size: M3
- Ball Size: 1.0 mm Ball
- Ball Material: Ruby
- Stem Length: 30.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 21.0 mm

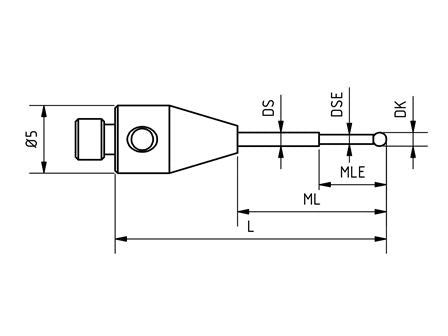

- DK: 1.0 mm
- L: 30.0 mm
- ML: 21.0 mm
- MLE: 5.0mm
- DS: 1.0 mm
- DSE: 0.7 mm
