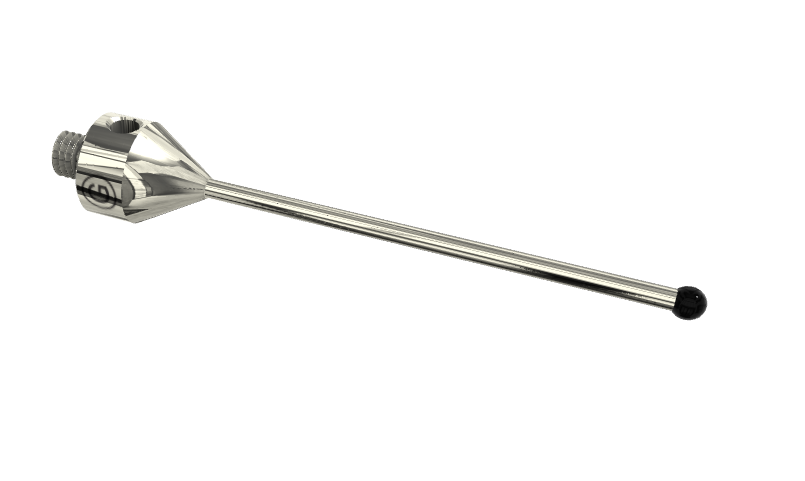

SM5 030 058 SCA - Straight M5 CMM Stylus 3mm Silicon Nitride Ball, 58mm Tungsten Carbide Stem, EWL 48mm
$80.00 USD
SKU
- Thread Size: M5
- Ball Size: 3.0 mm Ball
-
Ball Material: Silicon Nitride
- Stem Length: 58.0 mm
- Stem Material: Tungsten Carbide
- Effective Working Length: 48.0 mm

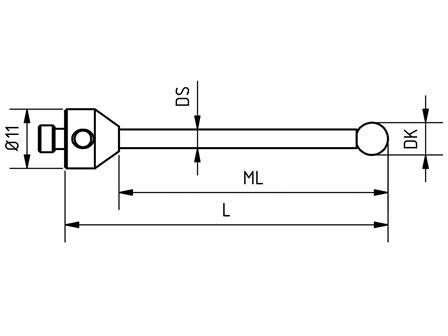

- DK: 3.0 mm
- L: 58.0 mm
- ML: 48.0 mm
-
DS: 2.0 mm
